Bearing Plates

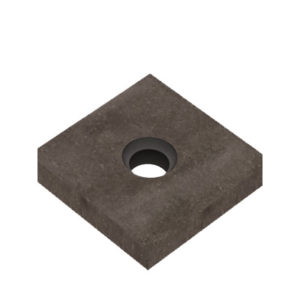

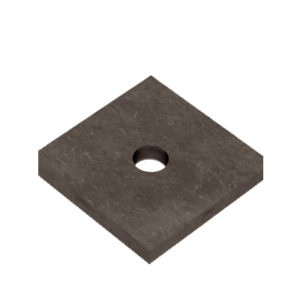

William’s steel bearing plates are standard with a round hole for non-grouted ground anchors. Also available are dished plates for use with spherical hex nuts and keyhole plates which provide free access for grout tube entry. Bearing plates are customized for each application. Plate dimensions should be specified around the parameters of the project. In addition, corrosion protection should be considered along with specifying hole diameter and bar angle.
End Caps
Williams offers several different types of end caps to provide corrosion protection at otherwise exposed anchor ends. Most often the caps are packed with corrosion-inhibiting grease. Caps made from steel are used in exposed impact areas.
CEN PVC Centralizer

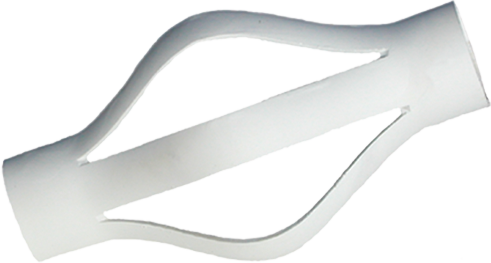

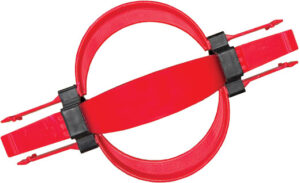

The Williams PVC Centralizer is used to center the anchor assembly in the drill hole. They are usually spaced 10 to 15 feet along the bar. To order, specify drill hole diameter, bar size or the outer diameter of sleeve when used over bar.
Eye Nuts
Williams Eye Nuts may be used as lifting eyes for forms, concrete blocks, concrete cylinders, machinery or equipment. The large base on three of the models makes them excellent for anchoring guy wires. Safety factors and working loads based on the ultimate strength of the Eye Nuts should be determined for the specific application by the project design engineer.
| Eye Nut Designation |
Minimum Inside Width |
Inside Height |
Ring Diameter |
Overall Height |
Taps Available | SWL (3:1 FS) ** |
SWL (5:1 FS) ** |
Blank Part Number |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNC & Coil Tie Rods |
Grade 60 Grade 75/80 |
150 KSI All-Thread |
B7X Hollow |
||||||||
| E1N * Cast Steel |
1-1/2” (38 mm) |
2-1/2” (64 mm) |
7/8” (22 mm) |
5-1/8” (130 mm) |
1/2” to 1” (13 to 25 mm) |
#4 to #8 | – | – | 23 kips (104 kN) |
14 kips (62 kN) |
E1M-00-E1N |
| E1N1C Forged Steel |
2” (51 mm) |
2-1/2” (64 mm) |
1.15” Oval (29 mm) |
5-1/2” (140 mm) |
1” to 1-1/8” (25 to 29 mm) |
#8 to #9 | 1” (26 mm) |
32 mm | 41 kips (182 kN) |
25 kips (109 kN) |
E1M-00-E1N1C |
| E1N3 Forged Steel |
2” (51 mm) |
3” (76 mm) |
1-3/4” (45 mm) |
8” (203 mm) |
1-1/8” to 1-3/8” (29 to 35 mm) |
#10 to #11 | 1” to 1-3/8” (26 to 36 mm) |
38 mm | 87 kips (386 kN) |
52 kips (231 kN) |
E1M-00-E1N3 |
| E1N4 Forged Steel |
2-1/2” (64 mm) |
3-3/4” (95 mm) |
2-3/16” (56 mm) |
10” (254 mm) |
1-3/4” to 2” (45 to 51 mm) |
#14 to #18 | 1-3/4” (46 mm) |
51 mm | 137 kips (608 kN) |
82 kips (365 kN) |
E1M-00-E1N4 |
| E1N4C Forged Steel |
3” (76 mm) |
5-3/4” (146 mm) |
2” (51 mm) |
11-1/2” (292 mm) |
1-1/4” to 2” (32 to 51 mm) |
#10 to #18 | 1-3/8” to 1-3/4” (36 to 46 mm) |
51 mm | 124 kips (550 kN) |
74 kips (330 kN) |
E1M-00-E1N4C |
| E1N5C * Forged Steel |
4-1/4” (108 mm) |
4-1/2” (114 mm) |
2-5/8” (67 mm) |
12” (305 mm) |
– | #18 to #20 | 2-1/4” to 2-1/2” (57 to 65 mm) |
76 mm | 204 kips (907 kN) |
122 kips (844 kN) |
E1M-00-E1N5C |
* Non-Domestic
** SWL based on straight tension loading only. Angled loading should be considered with caution, as it will significantly reduce Eye Nut capacity.
Contact your Williams representative for more information.
